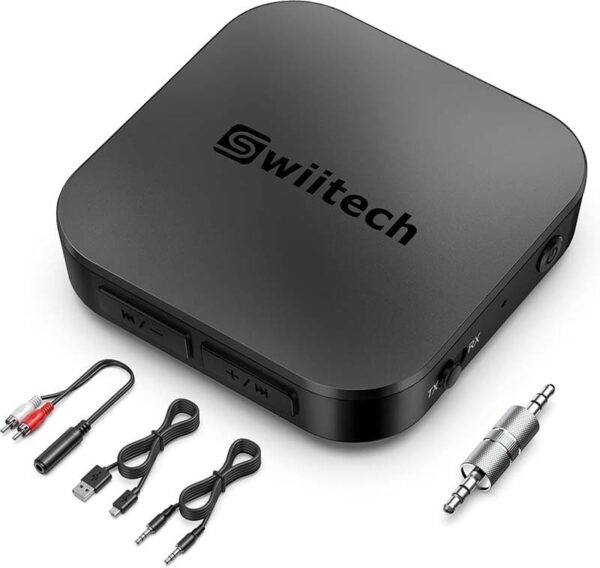

Bluetooth Transmitter Receiver, 2-in-1 Bluetooth AUX Adapter, V5.0 Bluetooth Adapter for TV/Car/Home Stereo/PC, Pairs 2 Devices Simultaneously, aptX Low Latency (Black)

$60.81

Special Feature Bluetooth Receiver,Bluetooth Transmitter,Compact
Brand Swiitech
Connectivity Technology AUX
Power Source Corded Electric
Material Polycarbonate (PC)

About this item

  • 2-in-1 Bluetooth Audio Adapter: In TX mode, the Bluetooth transmitter is plugged into non-Bluetooth devices, such as TV/MP3 player, through the AUX/RCA jack, and transmits the audio to the Bluetooth headset/speaker; in RX mode, the Bluetooth receiver can be connected to a wired speaker/car Audio input port and receive audio from smartphone via Bluetooth
  • Low Delay of High Fidelity Stereo: Transmit content without delay in TX mode. It can be connected with Bluetooth speakers or headphones supporting A2DP protocol to form a wireless audio transmission network, which can be applied to TV, CD, home theater and other equipment; It can also be connected with mobile phone / computer to play music. It supports SBC, apt-X, aptx-ll (Texas), fastream (Texas) and other codecs
  • Stable Connection and Easy to Carry: Using the latest mature Bluetooth chip and well-designed software, the compact Bluetooth adapter is small in size and light in weight, which is not only easy to carry, but also brings you a CD-like listening feast
  • 18 Hour Service Time: The charging time is about 2 hours (charging input requirements: 5 V DC ≥ 300 mA). It can be used continuously for 18 hours when fully charged. When it is in low power state, the adapter can be plugged into the power supply for charging while working
  • Dual Pairing Mode: In TX mode, two stereo Bluetooth speakers or stereo Bluetooth headsets can be connected at the same time and two speakers/headphones can make sound at the same time; in RX mode, two mobile phones with Bluetooth function can be connected at the same time
SKU: JH016 Categories: ,

Description


From the brand


Product Description

Bluetooth transmitter receiver

How to Use

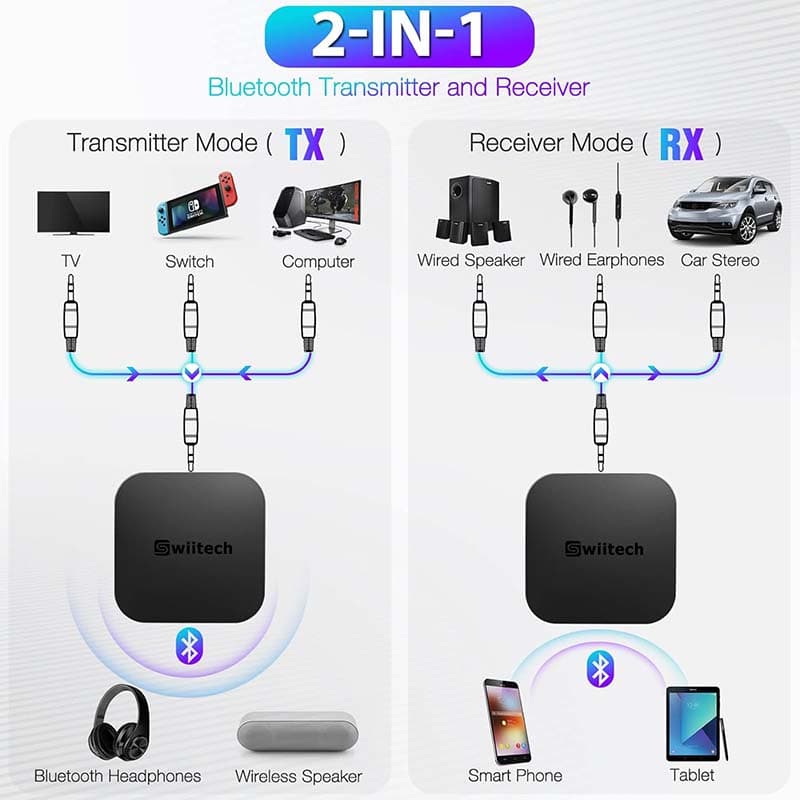

tx and rx

How to Use—Pairing in TX mode:

  1. Set the adapter to TX mode and connect it to your Non-Bluetooth device (television, music player, etc…) using a 3.5 mm audio cable/plug. Insert one end into the audio port of the adapter, and the other end into the audio out jack of the Non-Bluetooth device.
  2. Place your Bluetooth audio receiving device, (earphones, speakers,etc…) within a 3 feet/1 meter range and power it on. Set it to pairing mode.
  3. Press and hold the adapter’s power button for 3 seconds to turn it on. Tap the power button twice to enter pairing mode (the light will flash red and blue). After approximately 10 seconds, pairing will complete.
  4. After the connection is successful, the blue indicator light will remain on.
  • NOTE: A 3.5 mm female to 2 RCA male cable is suitable for connecting the adapter to a TV without a 3.5mm audio output jack. This cable is included in the package.

How to Use—Pairing in RX mode:

  1. Set the adapter to RX mode and use a 3.5mm audio cable/plug inserted into the audio port of the adapter. Insert the other end into your Non-Bluetooth audio receiving device (speakers, headset, etc…)
  2. Press and hold the adapter’s MFB button for 3 seconds to turn it on. Tap the power button twice to enter pairing mode. The adapter’s light will flash red and blue.
  3. Activate the Bluetooth function on your transmitting device (phone, tablet, etc…) and search for nearby Bluetooth devices.
  4. Find “TR-01” in the search results and tap on it to connect. Once connected, the LED indicator on the adapter will turn solid blue.

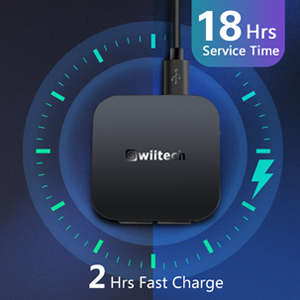

2 hrs charging time

Product diagram

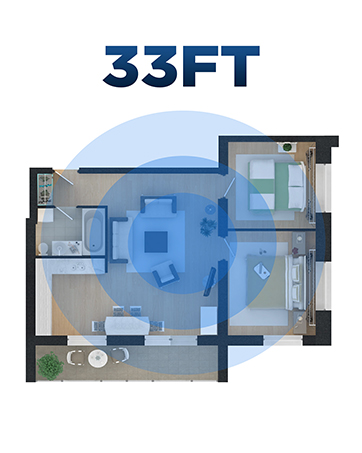

33 ft

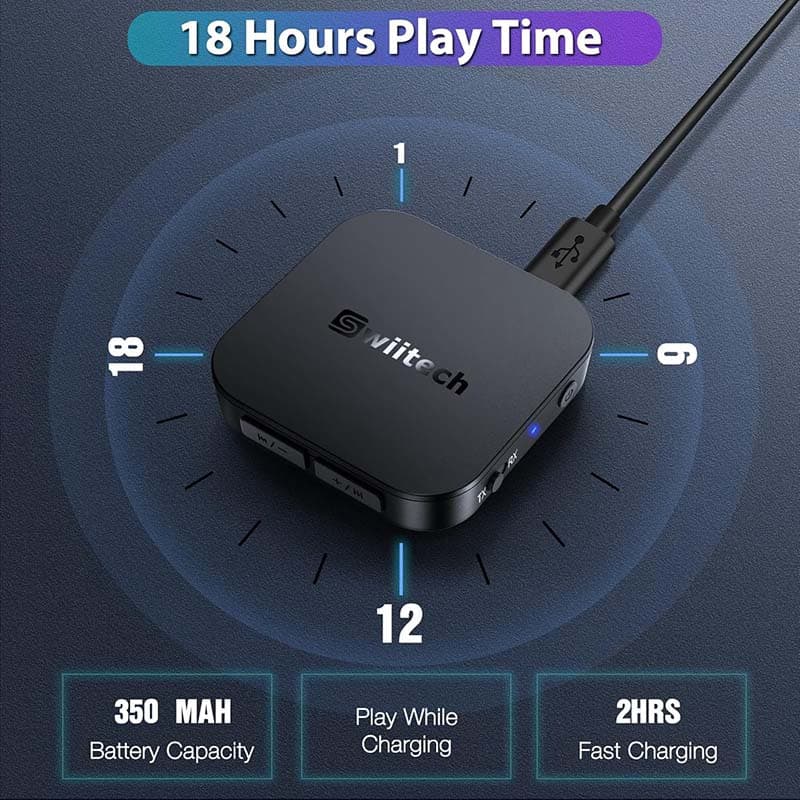

18 hour service time

The charging time is about 2 hours (charging input requirements: 5V DC ≥ 300mA). It can be used continuously for 18 hours when fully charged. When it is in low power state, the adapter can be plugged into the power supply for charging while working.

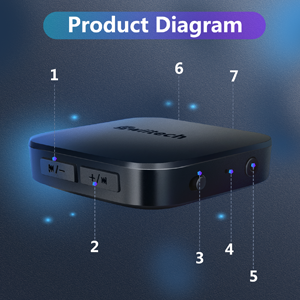

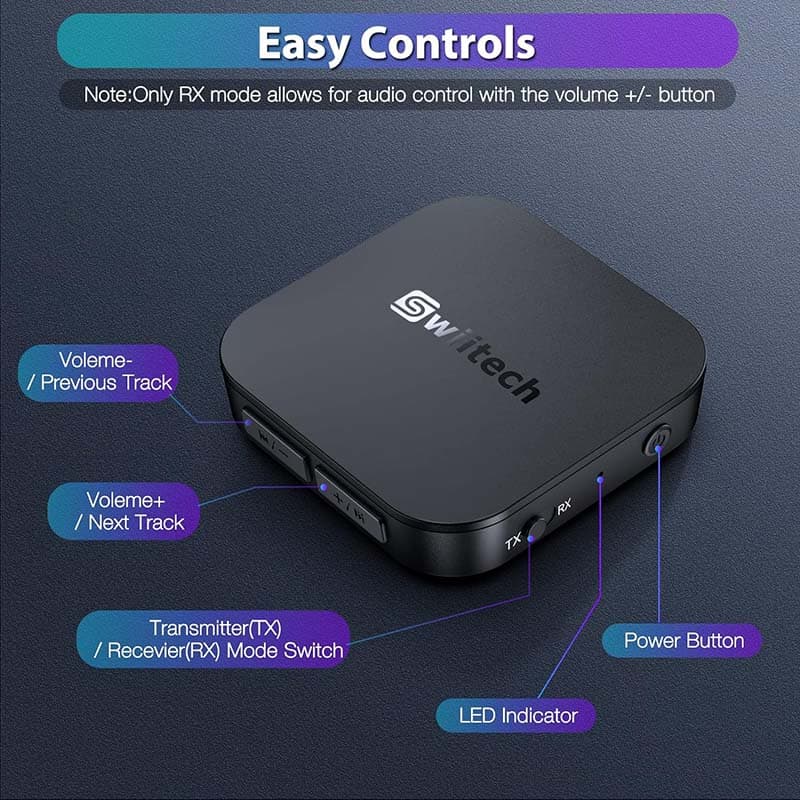

Product Diagram



  • 1. Volume – / Previous Track (RX Mode)
  • 2. Volume + / Next Track (RX Mode)
  • 3. Transmitter (TX) / Receiver (RX) Mode Switch
  • 4. LED Indicator
  • 5. Power Button
  • 6. Charging Port
  • 7. 3.5mm Audio Port

Bluetooth 5.0

Bluetooth: 5.0

Operation Range: Up to 10m (without any blocking objects)

Using the latest mature Bluetooth chip and well-designed software.

working while charging

FQAs

Haven’t been able to connect? If there are a lot of Bluetooth signals around you, please clear the pairing and then reconnect your own device. Clear the pairing history: After the current state (TX/RX state) is turned off, wait for 5 seconds, switch to another state (TX/RX), and then turn it on again is emptied.

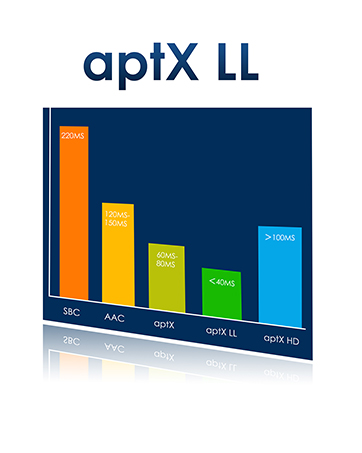

aptX low latency? There is no delay when running aptX Low Latency codec. Please kindly make sure your Bluetooth headphones/speakers are also supported to that codec.
Why is there a current sound? This is because the current sound may occur when the battery is too low or when the power quality is poor. Please connect the charging power supply before turning on the TR-01 Please note: It is not recommended to use this function frequently when charging, otherwise it may affect the service life of the battery.
No sound from TV? Please ensure the aux cable is tightly plugged into “AUDIO OUT” or headphone jack in your TV and both devices are successfully paired. Then change the TV’s sound settings from “TV speaker”to “Audio out”.
No volume control? Only when playing music in RX mode, short press the “power button” to pause/play music. Long press the “volume +” to increase the volume. Press and hold the “Volume -” button to decrease the volume.
Make phone calls? The adapter doesn’t have a built-in mic, so it cannot support any calls or communication, and can only play or listen to sound.
